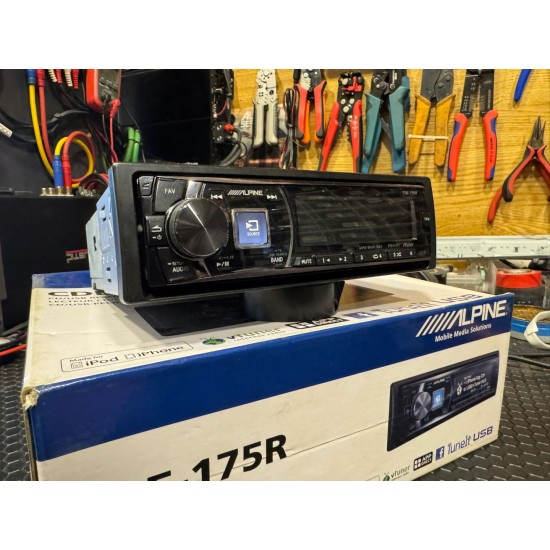

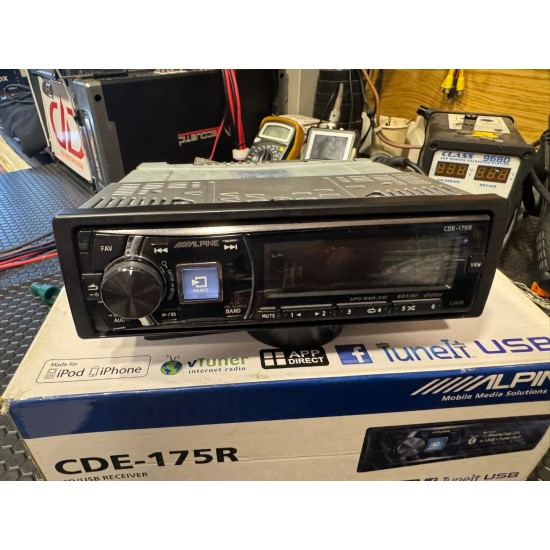

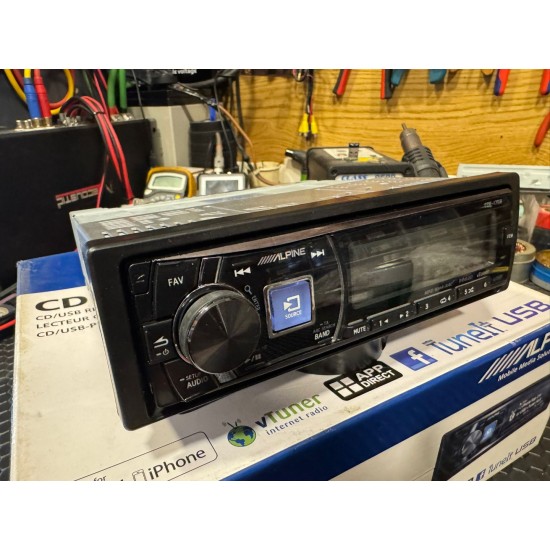

ALPİNE CDE-175R

Features

Tuner

• Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
• Memory: Auto Memory
• Seek Mode: Local/DX Selection

RDS

• RDS Functions: TA, TP, AF, PTY, News, Radio Text

Made for iPod® / iPhone®

• Compatibility for iPod/iPhone: Made for iPod touch 4th/3rd/2nd/1st Gen., iPod nano 6th/5th/4th/3rd/2nd/1st Gen., iPod classic 160GB/120GB/80GB, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
• Connection: KCU-442i (sold separately) Required
• Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Auidobook, Genius
• Alphabet Search
• Percentage Search
• vTuner Internet Radio: vTuner for Alpine Compatible
• App Direct Mode
• Direct Up/Down: Playlist, Artist, Album, Genre, Composer, Episode Up/Down
• M.I.X. (Shuffle) Play: Song, Album, All
• Repeat
• Battery Charging

Alpine TuneIt App

• Sound Setting & Sharing Function
• Sound Setting Data Upload to Alpine Cloud Server (Data Sharing)
• Facebook Notification
• Compatible for iPhone
• Available on Apple App Store

Disc Player

• Disc Type: CD Player
• Disc Playback Type: CD, CD-R/RW
• Music Playback: CDDA, MP3, WMA, AAC Playback
• M.I.X. Random Play: Track/Folder, All
• Repeat
• CD Text Display
• CD Text Name Search
• Percentage Search

USB Media Connection

• USB Connection: Rear USB Connection with 1000mA support
  (USB Cable Included)
• Music Playback: MP3, WMA, AAC File Playback
• USB Class: Mass Storage Class
• File/Folder Name Search
• Folder Up/Down
• M.I.X. Random Play: Folder, All
• Repeat

Sound Tuning

• Bass Engine™ Pro
• Subwoofer Level Adjustment
• Subwoofer Phase Select
• Subwoofer System Select: Subwoofer Level Control Management
• Equalizer
• 9-band Parametric Equalizer
• Digital Time Correction
• Digital Crossover Setting
• Application Volume Level Setting
• MediaXpander
• Power IC Management System

General

• Power Output: 4 x 50W High Power Amplifier
• Display: High Resolution Display
• White LED Backlighting System
• Illumination Buttons: 4 Illumination Colour Selection (Blue/Red/Green/Amber)
• High Grade Audiophile Design
• 3 PreOuts (2V, Front + Rear + Subwoofer)
• AUX-In: Rear AUX Input (3.5mm mini jack)
• Steering Wheel Remote Control Ready
• OEM Sub-display Ready
• Remote Control Ready
• Menu Language: English, German, French, Italian, Spanish, Dutch, Russian
• Clock / Calendar
• Firmware Updatable
• Detachable DIN Trim Plate
• Detachable Face Plate
• Dimmer
• Power Antenna Lead
• Remote Turn-On
• Start-Stop Engine unaffected

Specifications

Max Power Output Ratings

• Max Power Output: 4 x 50W

FM Tuner

• Tuning Range: 87.5 - 108.0 MHz
• Mono Usable Sensitivity: 0.7 μV
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

MW Tuner

• Tuning Range: 531 - 1,602 kHz
• Usable Sensitivity (IEC Standard): 25.1 μV / 28 dB

LW Tuner

• Tuning Range: 153 - 281 kHz
• Usable Sensitivity (IEC Standard): 31.6 μV / 30 dB

Disc Player

• Frequency Response: 5 - 20k Hz (±1 dB)
• Total Harmonic Distortion (at 1kHz): 0.008 %
• Dynamic Range (at 1kHz): 95 dB
• Signal-to-Noise Ratio: 105 dB
• Channel Separation (at 1kHz): 85 dB
• Wow & Flutter (%WRMS): B.M.L.

USB

• USB Requirements: USB 1.1/2.0
• Max. Power Consumption: 1,000 mA
• USB Class: Mass Storage Class
• File System: FAT 12/16/32
• MP3 Decoding: MPEG Audio Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: AAC-LC Format ′′.m4a′′ File
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 - 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
• Total Harmonic Distortion (at 1kHz): 0.008 %
• Dynamic Range (at 1kHz): 95 dB
• Signal-to-Noise Ratio: 105 dB
• Channel Separation (at 1kHz): 85 dB

Sound Tuning

• Subwoofer Level Adjustment: 0 to 15
• Subwoofer Phase Setting: 0° or 180°
• Bass Level Control Range: ±9.1dB at 100Hz
• Treble Level Control Range: ±9.1dB at 10kHz
• Time Correction: 0.0 to 336.6cm (3.4cm step)
• Parametric Equalizer (Band 1): 20 - 100 Hz
• Parametric Equalizer (Band 2): 63 - 315 Hz
• Parametric Equalizer (Band 3): 125 - 500 Hz
• Parametric Equalizer (Band 4): 250 - 1k Hz
• Parametric Equalizer (Band 5): 500 - 2k Hz
• Parametric Equalizer (Band 6): 1k - 4k Hz
• Parametric Equalizer (Band 7): 2k - 7.2k Hz
• Parametric Equalizer (Band 8): 5.8k - 12k Hz
• Parametric Equalizer (Band 9): 9k - 20k Hz
• Parametric Equalizer (Gain): -7 to +7 dB
• Parametric Equalizer (Bandwidth): 3, 4, 5
• Crossover Frequency: HPF + LPF 20, 25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200 Hz
• Crossover Slope: Flat, 6, 12, 18, 24 dB/oct.
• Crossover Gain: -12 to 0 dB
• Application Volume Level Setting: ±14 dB

General

• Power Requirement: 14.4 V.DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 2V / 10k ohms
• Aux In: 1.4V / 10k ohms
• Maximum Mounting Angle: 35°
• Weight: 1.5 kg

Dimensions

• Din Size: 1 DIN
• Chassis Size (W x H x D) mm: 178 x 50 x 162 mm
• Nose Piece Size (W x H x D) mm: 168 x 45 x 24 mm
